起订:2台
供应:585台
发货:5天内
山东摩森机械工厂常年生产出售一机多用小型装载机/滑移装载机/电动装载机，发动机符合欧五/EPA排放要求
源头工厂，支持定制，一件代发，所有货源充足，支持零售和批发，可接外贸订单，产品详询闫经理
产品展示

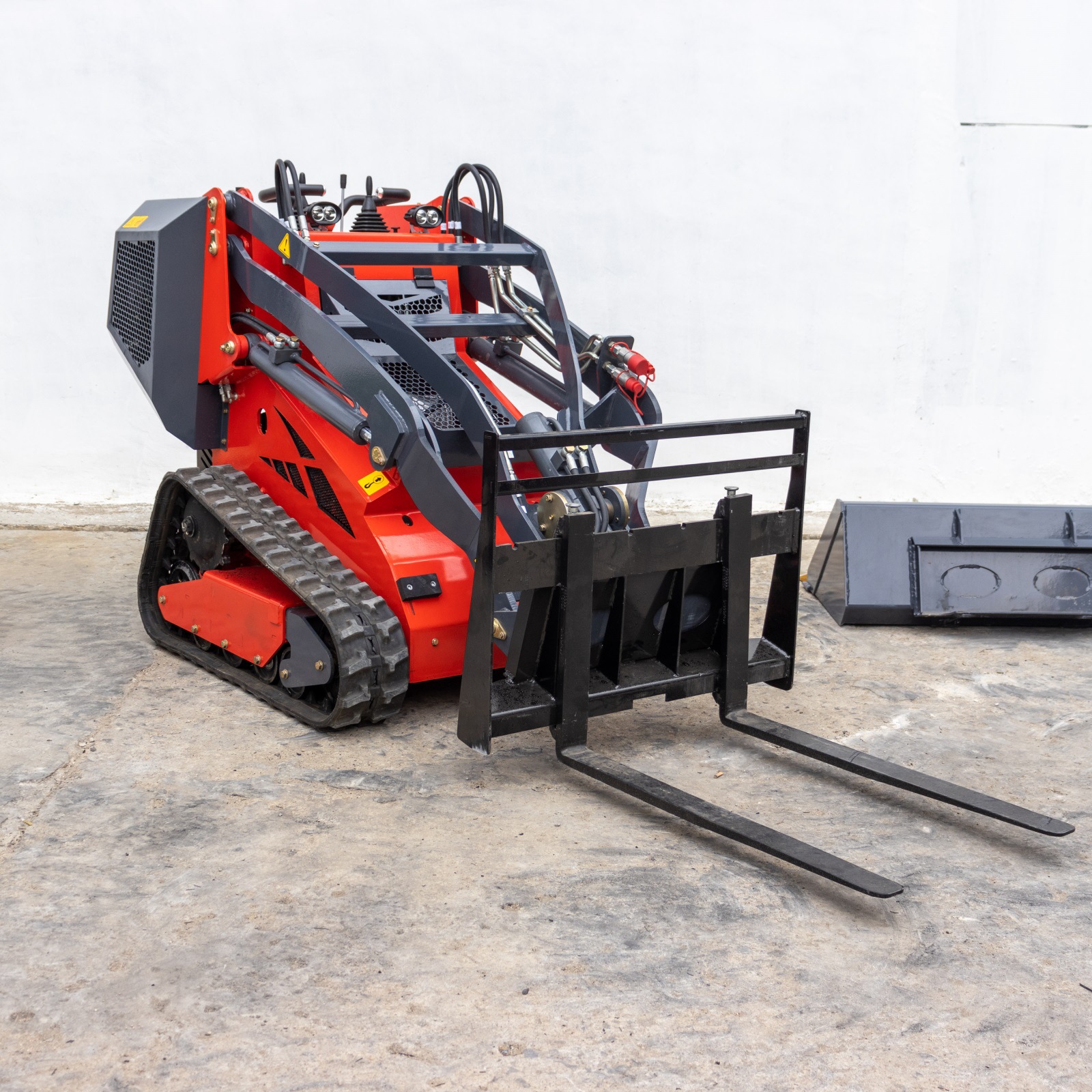

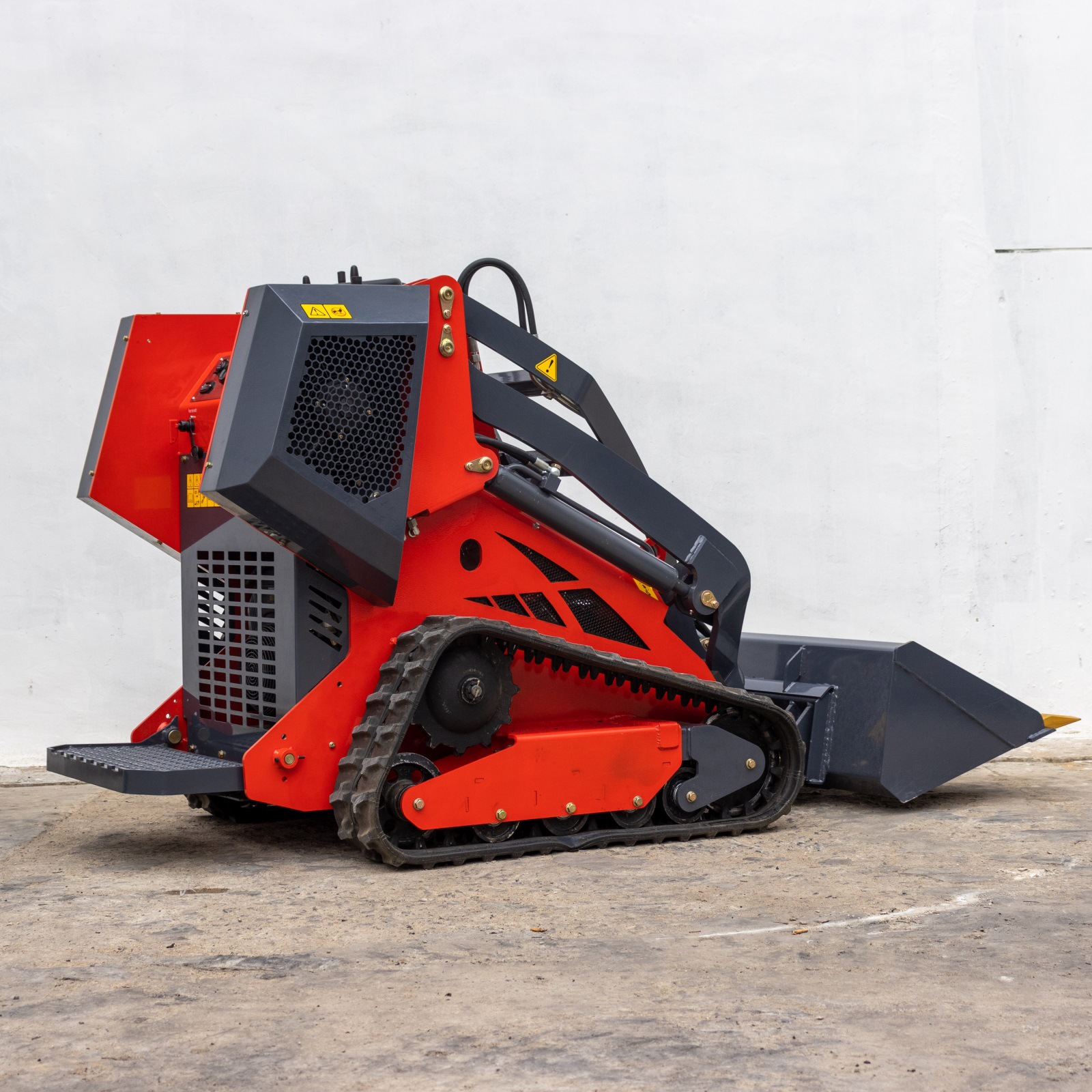

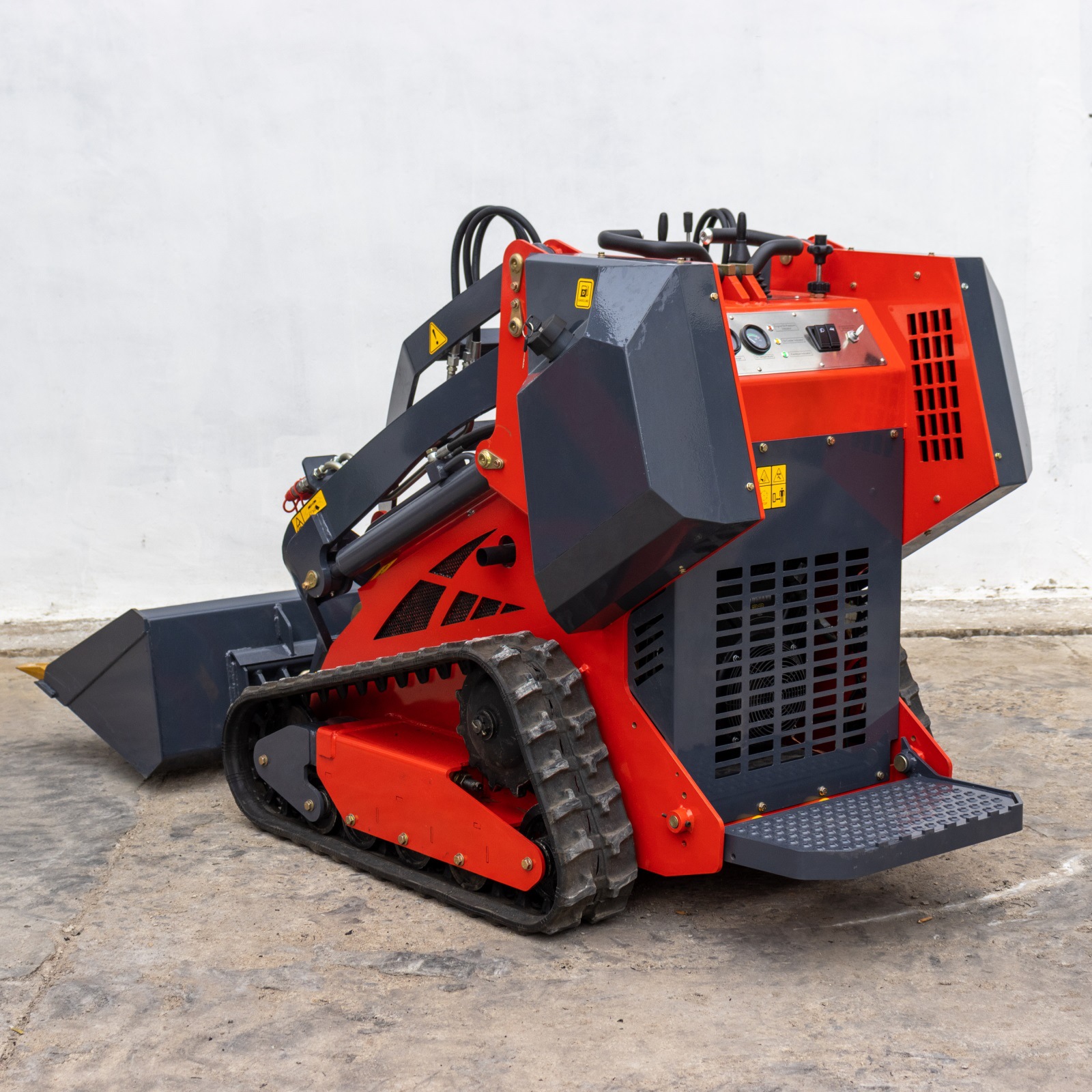

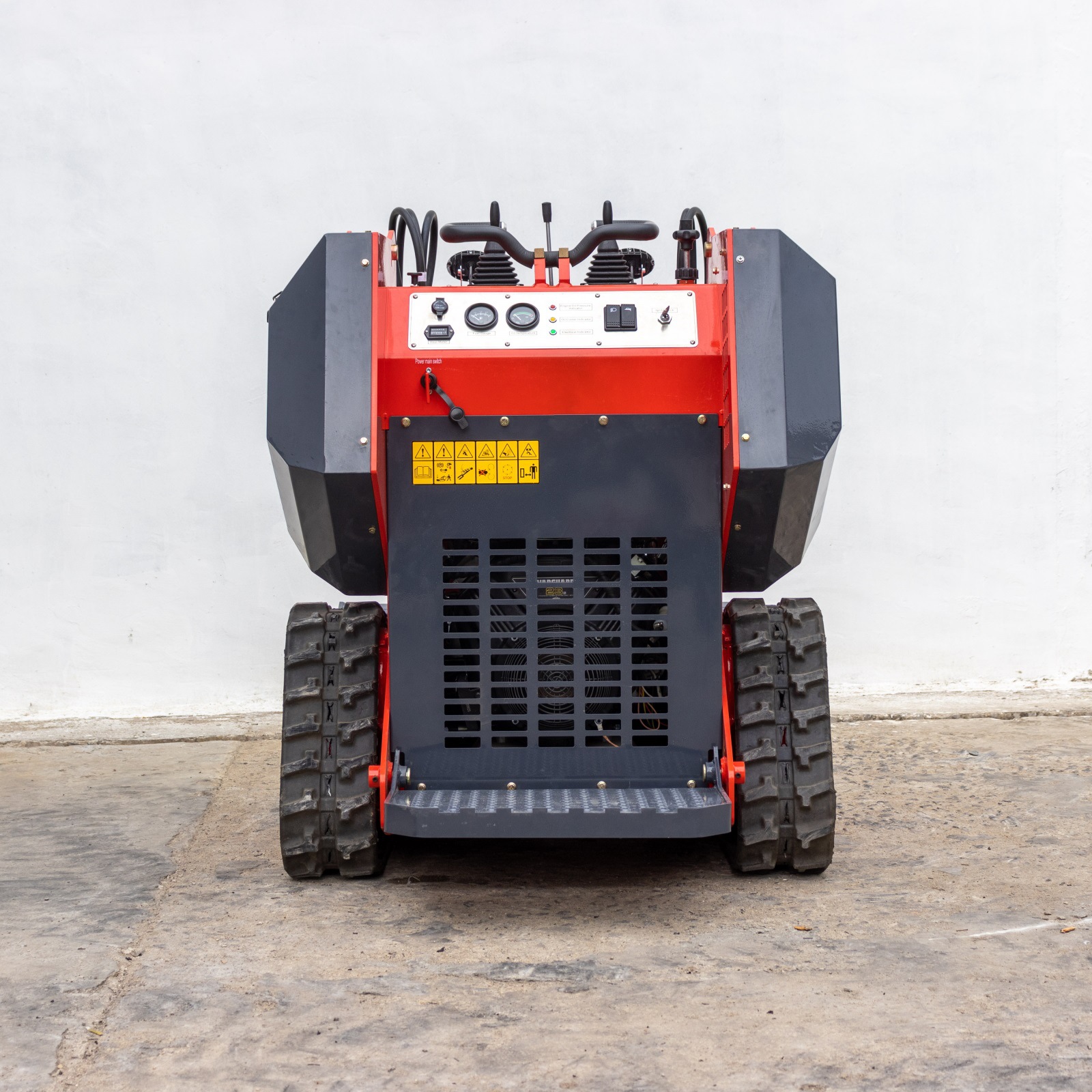

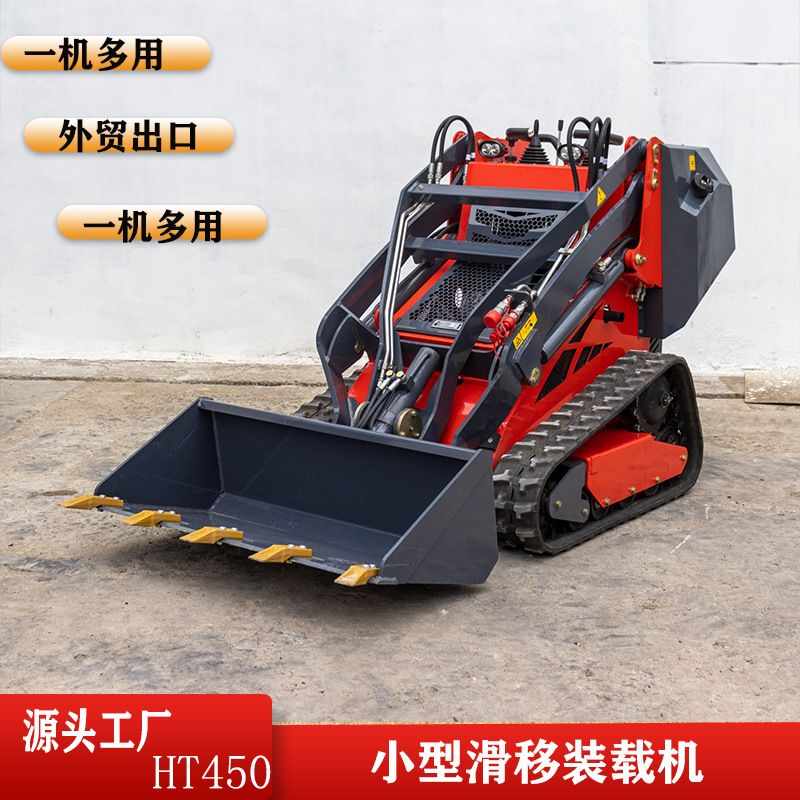

出口俄罗斯滑移铲车 地下室垃圾场清理杂物迷你小铲车滑移装载机
Ltem HX450
With Rubber Track
Metric U.S.
Max working height (H3) 2474 mm 97.4 inch
Max pin height (H2) 1977 mm 77.83 inch
Max Dumping height (H1) 1275 mm 50.2 inch
Max Dumping distance(E) 175 mm 6.89 inch
Max Dumping Angle (a3) 70° 70°
Rollback of bucket on ground (a2) 25° 25°
Departure angle (a1) 23° 23°
Total height (H) 1300 mm 51.18 inch
Ground clearance (F) 120 mm 4.72inch
Wheel base (L1) 890 mm 35.04 inch
Overall length without bucket (L3) 1767 mm 69.57 inch
Total width (B2) 1030 mm 40.55 inch
Bucket width (B1) 1070 mm 42.13 inch
Total length with bucket (L) 2319 mm 91.3 inch
Turn radius forward turning (R) 1440 mm 56.69 inch
overall length without the bucket after folding the pedal. (L2) 1633 mm 64.29 inch
Engine
Rated Power (KW) 18.2KW(23HP)
Rotating speed (rpm) 3600
Noise (Db) ≤95
Hydraulic System
Pressure (Mpa) 17
Working Time (s)
Raise 4
Dump 1.3
Lower 3.2
Operating Load 390 Kg 859.8 Lb
Bucket Capacity 0.13 m³ 4.59 ft³
Max Lifting Force 450 Kg 992 Lb
Travel Speed 0-4.5Km/h 2.8 mlie/h
Operating Weight 960 Kg 2116 Lb
